Technical Parameters:
 | - high efficiency A Grade monocrystal cells(156x156mm), 5 busbar
- 19% conversion efficiency
- Anti-reflection tempered glass - Anodic aluminium-alloy frame
- IP67 MC4 junction box |
|

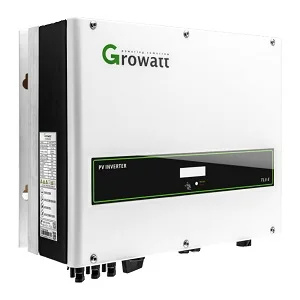

| Growatt 6kW On grid inverter - Rated AC output power: 6kW - Number of MPPT trackers 2 - Max. input current per MPPT tracker: 20A - MPPT voltage range 160~1000VDC - AC nominal voltage: 230V/400V 184~275V;320-478V. 50/60Hz, ±5Hz - AC grid connection type: 3W+N+PE |
 | WiFi module For system monitoring, available to check the whole system working status on your cellphone. |
|

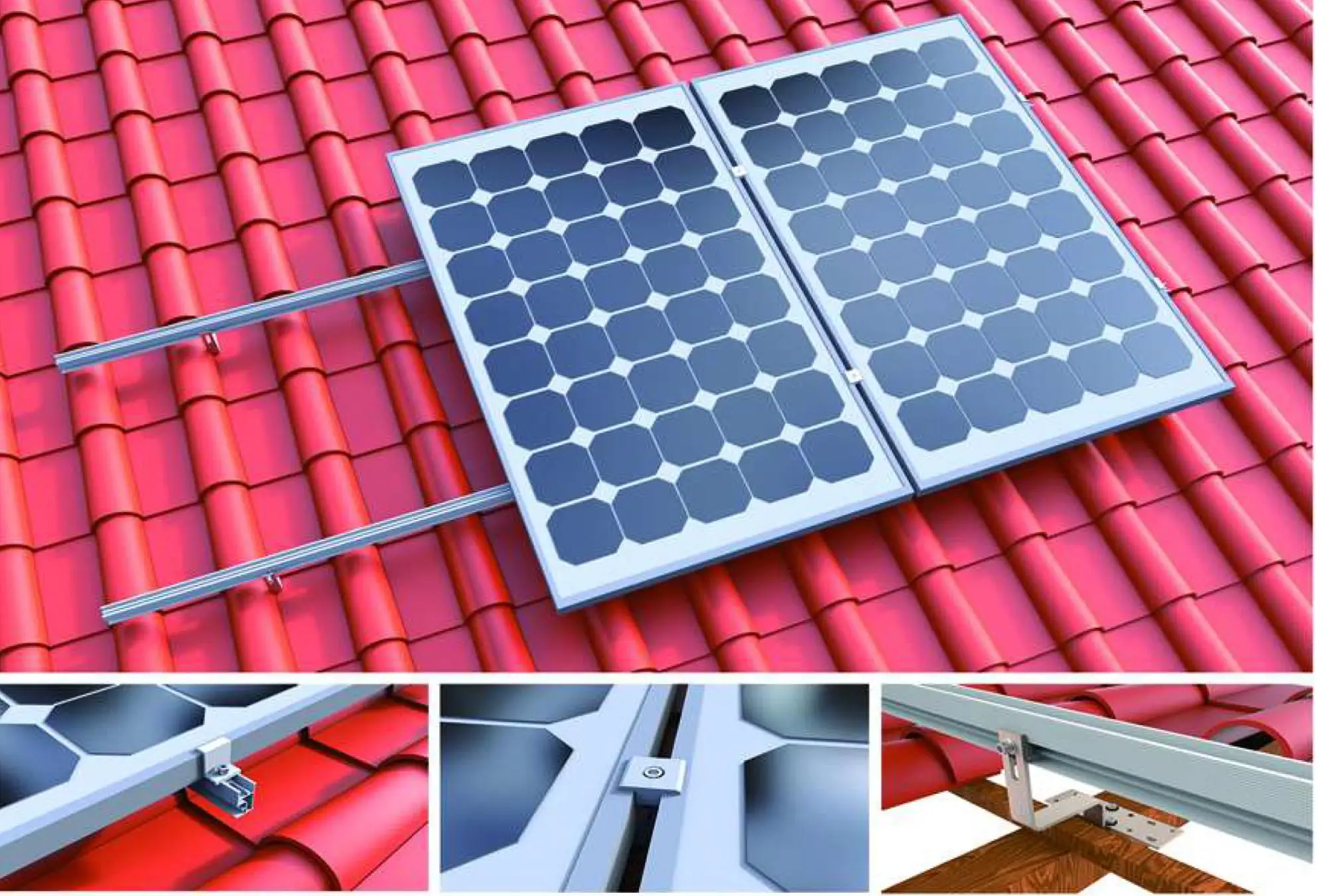

| Mounting structure - Pitched roof, flat roof, tile roof, tin roof, ground, vertical wall - high class anodized aluminium - Wind Load: up to 130mph (60m/s)
Snow Load: up to 30psf (1.4kN/m2) |

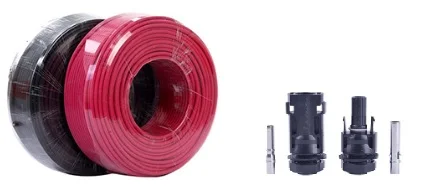

 | 4 mm² solar panel connection cables MC4 cable connectors |
FAQ
1. Q: Are you a factory?
A: Yes, welcome to visit our factory.
2. Q: Which size of solar system do you produce?
A: We can produce different sizes from 100w to 100kw, both on grid and off grid, and can match system
according to your request or the power that you need .
3. Q: How long is the lead time of orders?
A: Goods can be ready for shipment within 7-15 working days upon payment.
4. Q: Can I install it myself?
A: We provide installation drawing and user manual to guide the installation. If necessary, we will send our
engineer to your country for installation.
5. Q: How to calculate the freight?
A: We will calculate according to the specific location and transportation method, you can discuss it in detail
with us.
